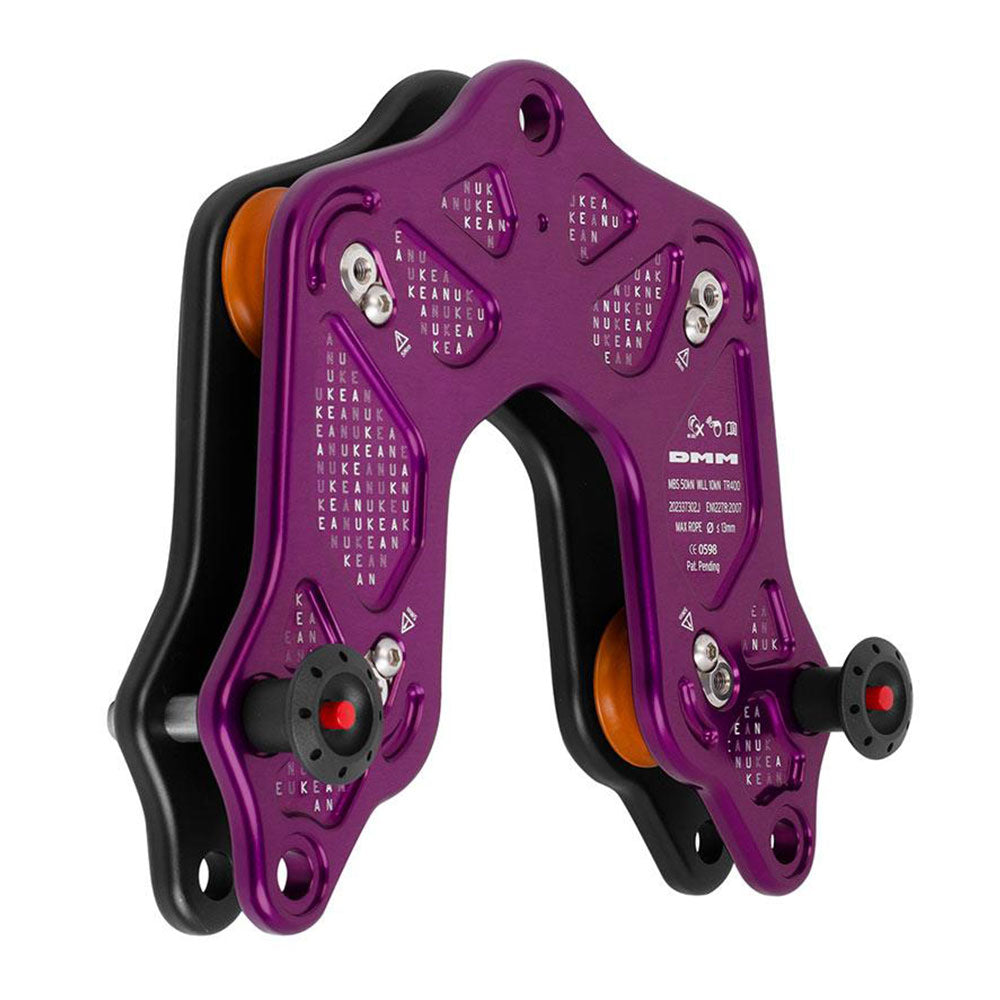

DMM Keanu Trolley Rigging Pulley

Compact trolley for highline rigging and rescue operations. If precision, speed and efficiency are important in your reeve, then the Keanu is your answer. By incorporating multiple sheaves within fixed side plates, not only have we ensured that you won’t forget critical rigging components, we have created a trolley that makes it easier to lift and move loads with precision and speed.

Keanu is lighter and smaller than highline assemblies configured using multiple components. Series redundancy can be configured with the addition of pulleys and lines via quick release locking pins. Two Keanu trolleys can be bolted together to create parallel redundancy using a joining kit available to purchase on the pulley spares page. All components are replaceable, so maintenance can be carried out by end users, making these trolleys ideal for rescue teams, arborists and theatre riggers.

FEATURES - Preconfigured for efficient highline reeves - Void in side plates allow pulley to retreat within trolley profile for efficient lateral movement - All sheaves fitted with efficient ball bearings - Eliminates the inefficiencies of pivoting carabiners and pulleys of traditional highline reeves - Quick connection to control and backup lines - All components replaceable - Fast conversion to series and parallel redundancy - Compatible with DMM Gyro PUL230 pulley and bat plate large RIG-L-GD - CNC machined - Patent pending

• MBS: 50kN
• WLL: 10kN
• SHEAVE DIAMETER: 38mm
• ROPE DIAMETER: 11-13mm
• DIMENSION BETWEEN PLATES: 17mm
• OVERAL DIMENSIONS: 220 x 250 x 40mm
• WEIGHT: 1698g
