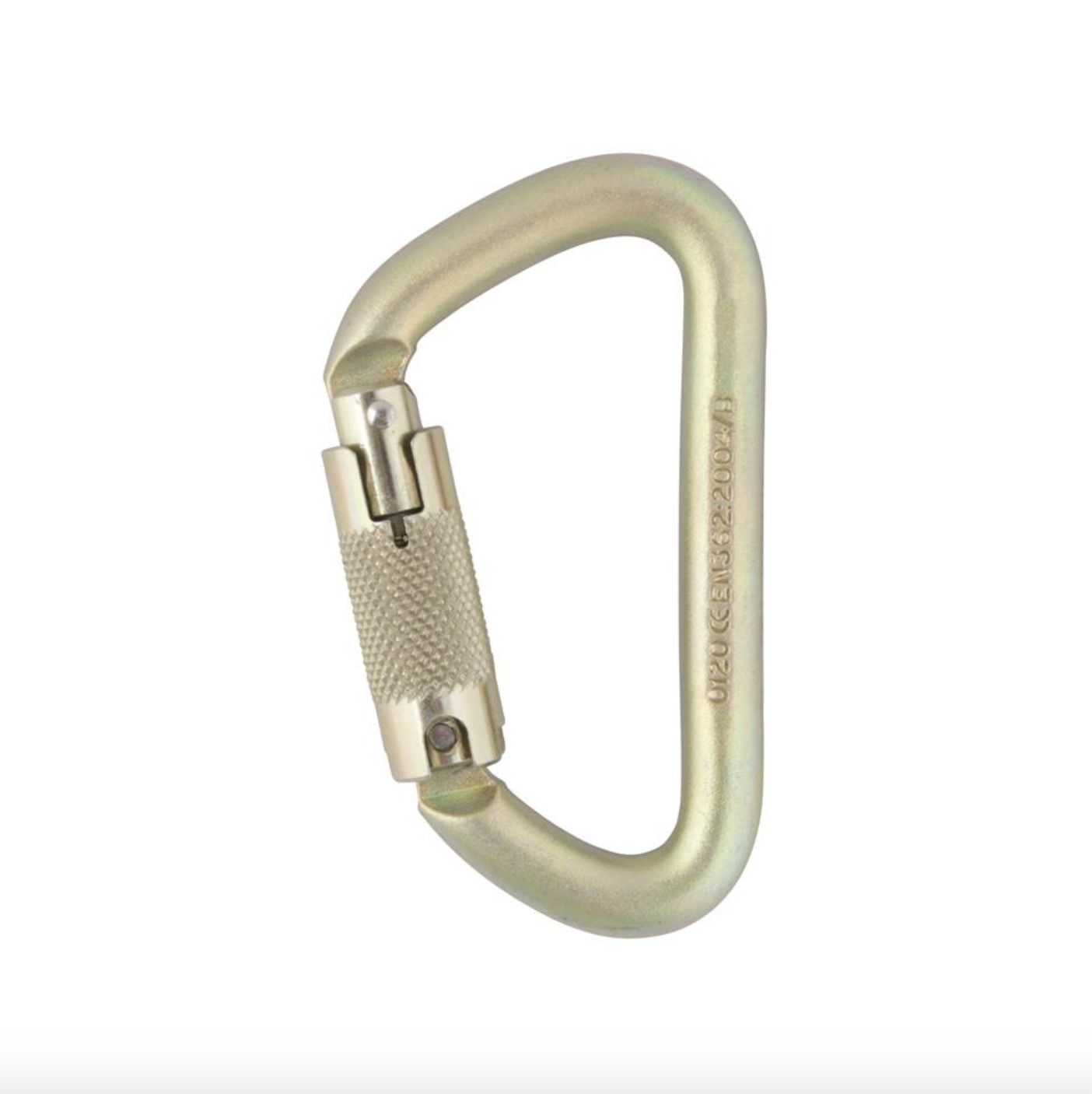

DMM Offset D Steel Locksafe Carabiner

An Offset D connector takes the spinal loading strength of a D-shaped back but extends the basket at one end to maximize gate opening and overall size without compromising ergonomics and weight. Cold forged from 12mm bar, the strengths achieved in testing exceed 45kN and it is first choice in applications requiring stronger connectors in their systems.

MBS Major Axis MBS Minor Axis MBS Gate Open Dimensions Weight Opening
45kN 12kN 12kN 62 x 111mm 248g 17mm
