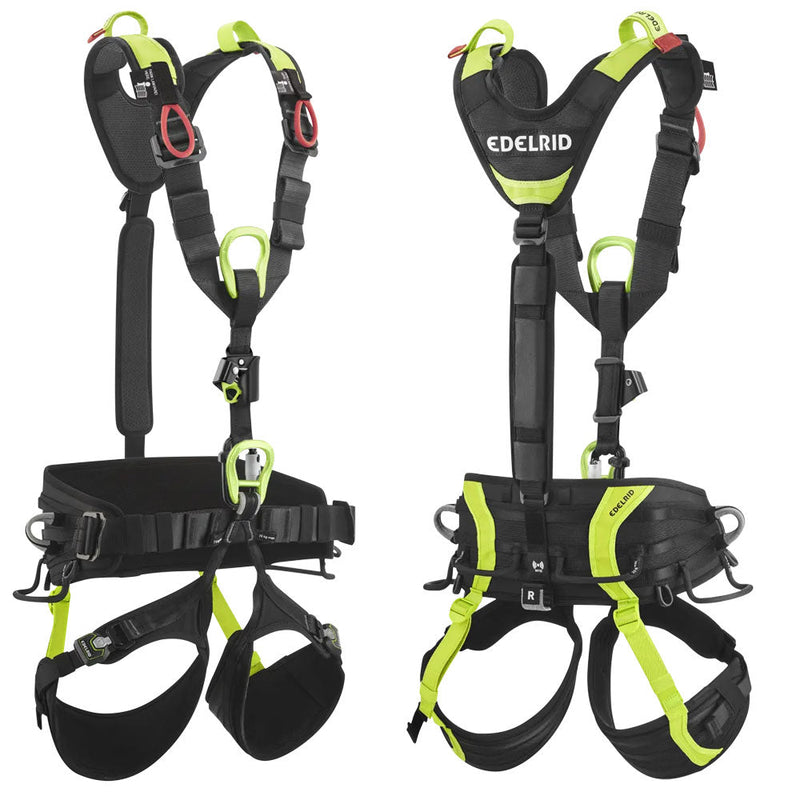

Lightweight modular harness for any kind of work and movement on the rope or in rope systems. Especially comfortable thanks to 3D Vent technology. The intelligently integrated but detachable chest ascender enables efficient climbing in rope systems. Available with two chest harnesses: the traditionally designed VECTOR CHEST Y or the VECTOR CHEST X, which allows maximum freedom of movement.
Features
Technical Information
1. Innovative threaded chest ascender for greater efficiency
2. Adjustable leg loops can be fully opened thanks to Double Lock buckles
3. FORAS carabiner to connect chest harness and waistbelt
4. Lateral, vertically aligned textile eyelets according to EN 358
5. Central eyelet according to EN 813 for attaching an abseiling device
6. Four rigid gear loops for up to 12 carabiners per loop (load: 25 kg)
7. Four Accessory-Loops (strength: 50 kg)
8. Two central loops for attaching a work positioning seat (Air Lounge)
9. Two attachment options for SM Clip Large gear carabiners (strength: 0 kN)
10. Restrain Loop
11. Dedicated space to install a First-Aid-Kit
SIZING INFORMATION
Size 1: Height:
160-185cm, Waist: 68-95cm Thigh: 48-65cm
Size 2: Height:
175-200cm,
Waist: 82-120cm, Thigh: 55-72 cm
Light, comfortable, and multipurpose: this modular harness system will revolutionize working at heights. The VECTOR harness system consists of a seat harness and two chest harnesses. Together with the new CHEST CRUISER chest ascender, it offers numerous possible combinations. Customize your own harness, depending on the area of use or personal preferences. It is also possible to integrate the TREEREX tree care harness into the system.
VECTOR X
Article number: 88719 // Weight: 1600 g, 1750 g // Size: size 1, size 2 // Certification: EN 813 (150 kg), EN 12841-B (150 kg), EN 358, EN 361
VECTOR Y
Article number: 88719 // Weight: 1600 g, 1750 g // Size: size 1, size 2 // Certification: EN 813 (150 kg), EN 12841-B (150 kg), EN 358, EN 361
Indicator Webbing
All load-bearing straps of our harnesses are equipped with indicator webbing. In the event of excessive wear a bred wear indicator warning thread becomes visible – alerting the user that the harness should be replaced.
Harnesses with integrated RFID transponders — for quick registration and effective management of PPE equipment. Using appropriate software it is possible to monitor application cycles and/or the PPE status of the product. This saves time and money while increasing safety.
The 3D-Vent technology harnesses offer widespread load transmission, ergonomic fit and good breathability. Our 3D-Vent harnesses are among the most comfortable harnesses on the market. High quality padding reinforced with homogeneous stitched webbing ensures even load transmission over all areas of the harness. The three-dimensional form of the leg loops are anatomically shaped to fit the human body. The robust three-layer foam padding retains its shape even when subjected to pressure. The perforations in the foam allow body heat and perspiration to escape.
The VECTOR CHEST Y is a comfortable chest harness in the classic Y-shaped design. Ergonomically shaped shoulder straps and wide 3D mesh padding reduce pressure points on the neck and nape of the neck and ensure that the load is optimally distributed across the shoulders.
Certification: EN 361, EN 12277 Typ D
Weight: 400 g (Size 1), 440 g (Size 2)
The VECTOR CHEST X features the classic X-shaped design. In combination with the VECTOR HIP, this creates a versatile harness system with excellent handling and optimum load distribution.
Certification: EN 361
Weight: 400 g (Size 1), 440 g (Size 2)
Compact chest ascender for efficient and fatigue-free climbing on the rope. The ascender can be opened with a simple movement. The modular construction with the fastening plate and the textile fastening loops allows the integration into different chest harness systems.
Certification: EN 12841-B | EN 567
Weight: 120 g
